DXF Lab - View & Convert DXF Files (3D) at Mac App Store analyse

A multifunctional tool for viewing and coverting DXF files in Mac. DXF Lab provides you with a powerful file list, because of it, you can easily manage your DXF files, for example, you can locate your DXF files storage location, or batch convert DXF files to PDF, or batch convert versions of DXF files and so on.

Supported file versions:
DXF: AC1006 (dxf version 10), AC1009 (dxf version 11 or 12), AC1012 (dxf version 13), AC1014 (dxf version 14), AC1015 (dxf version 2000), AC1018 (dxf version 2004), AC1021 (dxf version 2007), AC1024 (dxf version 2010), AC1027 (dxf version 2013).

Features:

Viewer:

1.Operation smoothly for DXF files: For general operations, such as Zoom In, Zoom Out and Zoom Actual, it will respond quickly to your actions, no waste of time.

2.Drag to move: You can drag the drawing through the mouse and then move it to any position.

3.Layout management: Show you all the layout of DXF files, switch layouts easily.

4.Free Orbit: Orbit the 3d DXF files like AutoCAD, support to switch to the specified view.

5.List management: Drag to add DXF files to the list, batch open or close files and sort the list of files.

6.Double-click on local DXF files to open DXF Lab.

7.Print DXF files, you can set print parameters according to the need. Support mode: Display, Extents and Window.

Converter:

1.Export as SVG: Batch convert DXF files to SVG, you can drag to add DXF files, or through the Import function of the PopupMenu.

2.Export as DWF: Batch convert DXF files to DWF, you can drag to add DXF files, or through the Import function of the PopupMenu.

3.Export as Collada: Batch convert DXF files to Collada, drag to add DXF files, or through the Import function of the PopupMenu.

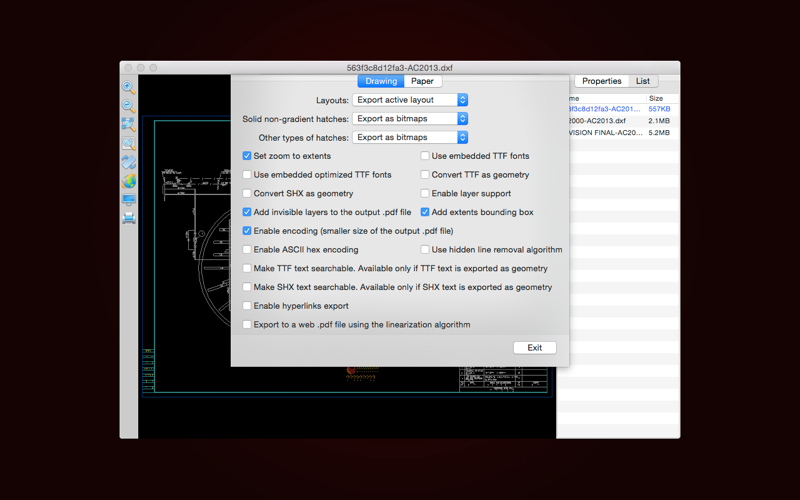

4.Export as PDF: Batch convert DXF files to PDF, and you can set the conversion parameters, such as page settings, export all layouts, Hatchs mode, etc. (Note: When the conversion is not complete, please check the "Set zoom to extents" in Conversion Settings). Drag to add DXF files, or through the Import function of the PopupMenu.

5.Export as Image: Batch convert DXF files to images, including JPEG, BMP and PNG, and you can set the image size, background color.

6.Save as DWG/DXF: Batch save DXF files to specified DWG and DXF version. Drag to add DXF files, or through the Import function of the PopupMenu.

We regularly update the product, if you have any questions or suggestions, please leave a message on our website.

If you are enjoying the app, please consider leaving a review or rating.
