Elec Ref at Mac App Store analyse

Trunnion LLC

Utilities Reference

176 ratings · Power index: 215

Free Mac App Store Follow Website

Version 1.27

Size 1.88 Mb

Updated 9 years ago

Released 10 Mar 2010

How do you feel about this app?

Screenshots

Description

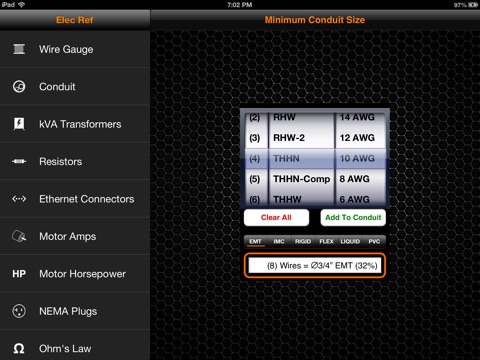

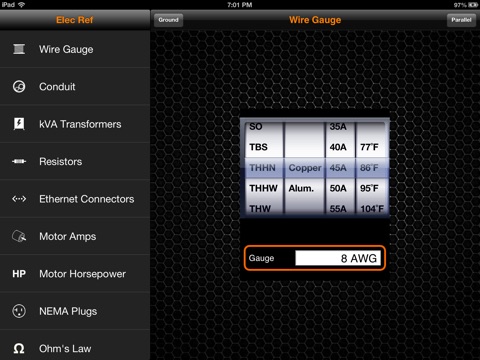

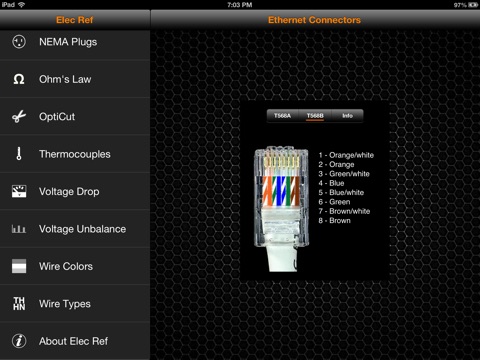

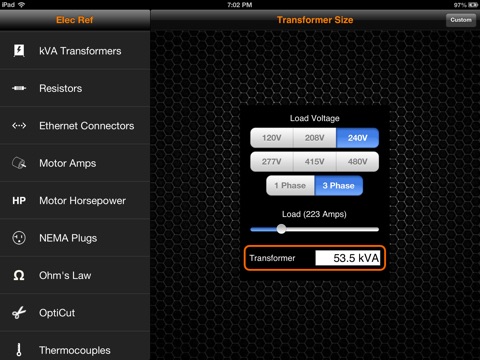

A pocket reference for electricians and electrical engineers, Elec Ref provides a set of convenient utilities for reference on the job or on the go. Features: • Wire gauge calculator selects an appropriate wire gauge based on wire type, current, and environmental temperature. • Parallel conductors determines the required number of conductors for a load and wire size. • Conduit size calculator determines the minimum conduit diameter required for a series of wires. • Transformer sizing calculator helps you buy the right transformer for your load, voltage, and phases. • Resistor color code utility identifies the ohms, tolerance, and temperature coefficient based on a resistors color bands. • Motor amps reference gives typical Full Load Amps for standard motors. • Motor horsepower calculator determines a motors hp based on its voltage, efficiency, and amps. Also typical FLA values for electric motors. • RJ45 Ethernet plug wiring reference. • NEMA Plugs reference, locking and non-locking plugs to 60 amps. • Standard wire colors for low voltage, 3 phase, telephone, British Automotive, bladed fuse color codes • 25/50 pair color codes for telephone cables • Wire types defined for more than 20 types including THHN, THWN, MTW, and all the major types. • Thermocouple wire reference for 12 different types • OptiCut cut optimization: how best to get a series of wire cuts out of a combination of partial spools and how many new spools youll need to buy. • Ohms Law feature does all the permutations of V=IR and calculates Power as well. • Voltage Drop calculator • Voltage Unbalance calculator Please share your ideas for additional functions at our website. If you like Elec Ref please leave us good feedback on the iTunes store!

Estimates

Monthly Downloads > 4.73k

Est. Revenue ~ $1.94k
